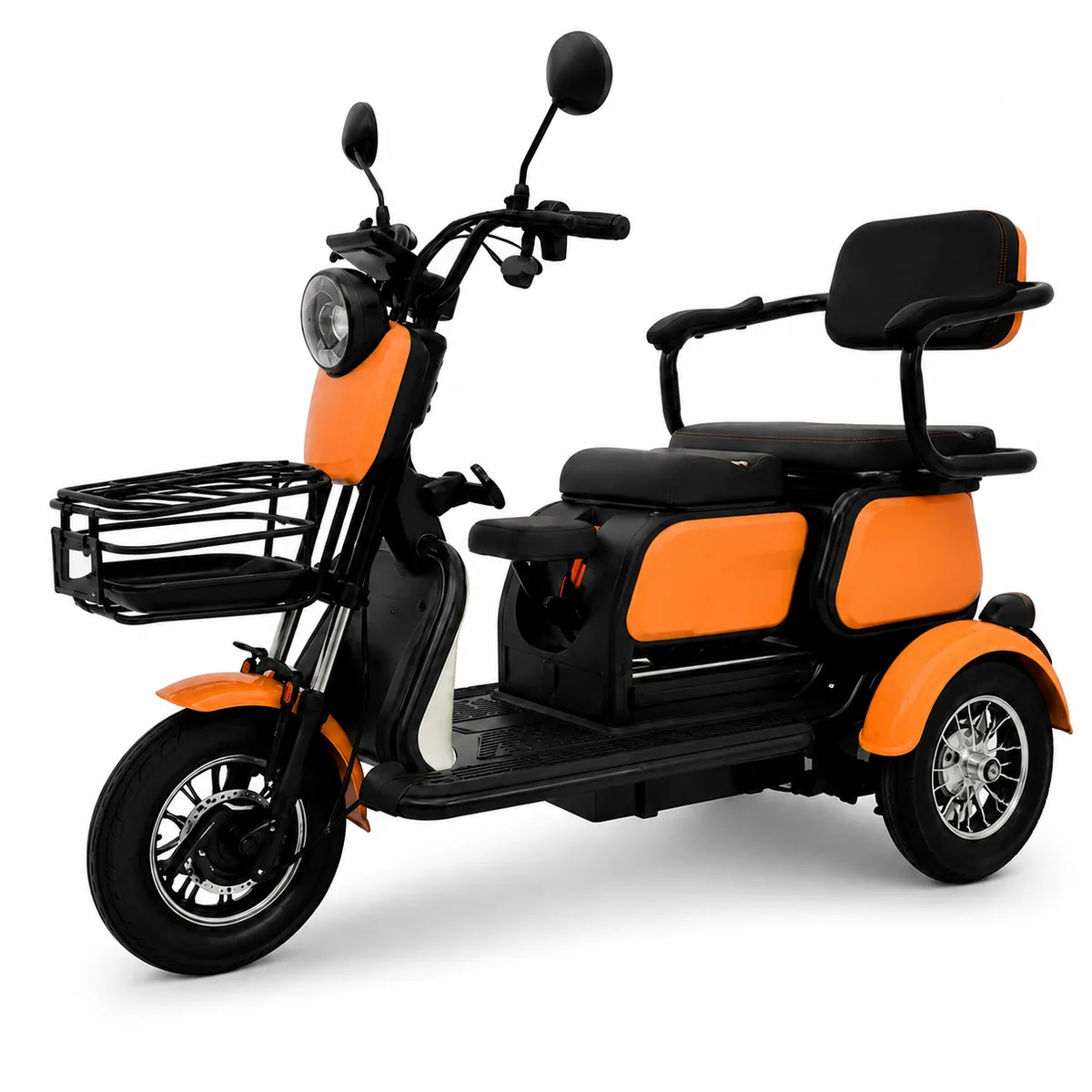

NAVERO X3 Compact Passenger Tricycle

Compact family mobility

X3

Compact Passenger Tricycle

A simple compact platform for local passenger mobility and distributor entry ranges.

Seating
1 driver + 1 passenger
Motor
600 W differential motor (sine-wave)
Vehicle size
155 x 74 x 104 cm

Minimum order: 20 units. Typical lead time: 20-30 days, confirmed with your project.

Standard configuration

Key specifications.

Values shown are based on the current product data. Final configuration is confirmed with the order.

Available colors

RedGrayBlueBlack

Vehicle & export specifications

Front suspensionSteel front fork
Rear suspensionSpring suspension
DisplayDigital display
HeadlightHigh-brightness headlight
Controller12-MOSFET controller
Motor600 W differential motor (sine-wave)
Rear axleSplit rear axle with drum brakes
WheelsSteel wheels
Tires300-8 tubeless tires, front and rear
Seat cushionsMolded foam seats with embossed backrests
BrakesFront 110 mm / rear 130 mm drum brakes
Frame finishE-coated and powder-coated frame
Low-speed climbing gearNot available
Vehicle size155 x 74 x 104 cm
Carton size135 x 72 x 64 cm
40HQ complete units104 units
Net weight74 kg
40HQ knock-down sets150 sets
Seating1 driver + 1 passenger
Ground clearanceAt least 100 mm

Performance references

Speed reference25-40km/h
Gradient referenceUp to 15%
Range reference30-55 km
Charging reference6-8 h

Performance figures are supplier references. Battery and charger are not included in the base configuration. Confirm battery capacity, load, route, speed setting and test conditions before placing an order.

Applications

Market applications

A simple compact platform for local passenger mobility and distributor entry ranges.

Optional configuration

Confirm for your market.

  • Battery and charger selection for your market
  • Logo, colors and local-language labels
  • Delivery format and spare parts package

OEM customization

Build under your brand.

  • Logo and decals
  • Vehicle color
  • Local-language labels
  • User manual content
  • Packaging and carton marks

Packing and delivery

Complete Vehicle, SKD and CKD.

Final packing dimensions and loading quantities depend on the confirmed vehicle configuration.

01

Complete Vehicle

104 units per 40HQ container (reference).

02

Knock-down supply

150 sets per 40HQ container (reference). SKD / CKD assembly scope is confirmed per project.

03

CKD

Contact us for configuration details.

Standard carton135 x 72 x 64 cm

Container quantities are packing references, subject to final configuration. Knock-down quantities do not specify the extent of disassembly. Confirm the SKD or CKD packing plan before ordering.

Long-term support

Plan spare parts with X3.

A model-specific spare parts package can be discussed with the vehicle order. The final parts list, quantity and packing method are confirmed according to the buyer's after-sales plan.

Request Parts Planning
Can X3 be supplied under our brand?

Yes. Logo, color, labels, manual content and packaging can be reviewed for private-label production.

Is X3 available as SKD or CKD?

Delivery format depends on the model, configuration and buyer assembly capability. Contact us for configuration details.

What battery is used on X3?

Battery configuration is confirmed according to the target market, application and project requirements.

Are spare parts available for X3?

A model-specific spare parts package can be planned with the order. Final parts and quantities are confirmed with the buyer.

X3 project inquiry

Configure X3 for your market.

Send the country, application, quantity, delivery format, battery preference and branding requirements.
