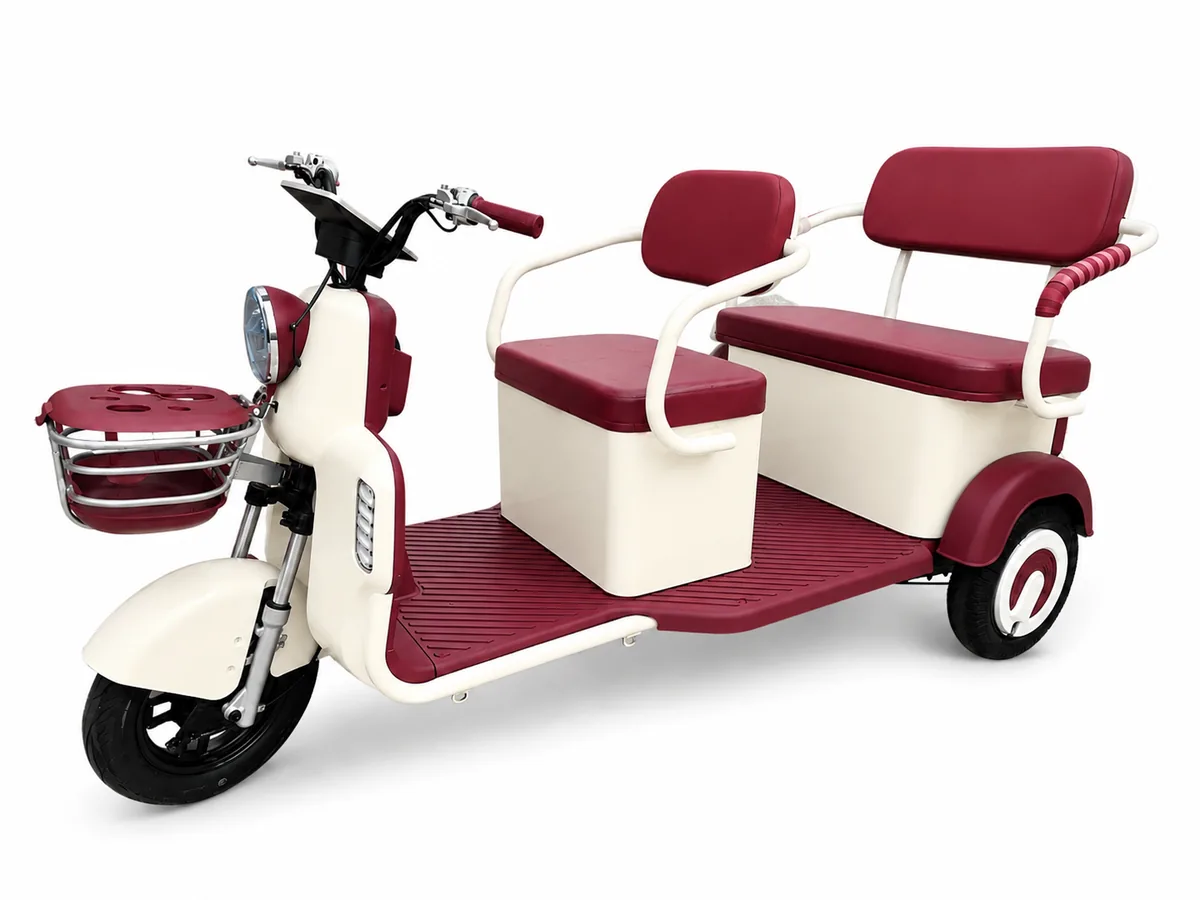

NAVERO C19 Large Double-Row Passenger Tricycle

Double-row passenger

C19

Large Double-Row Passenger Tricycle

A larger passenger platform with 300-10 tires for buyers seeking more vehicle space in their range.

Seating
1 driver + 2 passengers
Motor
650 W differential motor (sine-wave)
Vehicle size
235 x 100 x 114 cm

Minimum order: 20 units. Typical lead time: 20-30 days, confirmed with your project.

Standard configuration

Key specifications.

Values shown are based on the current product data. Final configuration is confirmed with the order.

Available colors

RedPurpleGreen

Vehicle & export specifications

Front suspensionHydraulic front fork
Rear suspensionSpring suspension
DisplayDigital display
HeadlightHigh-brightness headlight
Controller12-MOSFET controller
Motor650 W differential motor (sine-wave)
Rear axleSplit rear axle with drum brakes
WheelsSteel wheels
Tires300-10 tubeless tires, front and rear
Seat cushionsMolded foam front and rear seat cushions
BrakesFront 110 mm / rear 130 mm drum brakes
Frame finishE-coated and powder-coated frame
Low-speed climbing gearOptional
Vehicle size235 x 100 x 114 cm
Carton size200 x 105 x 90 cm
40HQ complete units26 units
Net weight108 kg
40HQ knock-down sets100 sets
Wheelbase1690 mm
Track width870 mm
Seating1 driver + 2 passengers
Ground clearanceAt least 100 mm

Performance references

Speed reference25-40km/h
Gradient referenceUp to 25%
Range reference30-55 km
Charging reference6-8 h

Performance figures are supplier references. Battery and charger are not included in the base configuration. Confirm battery capacity, load, route, speed setting and test conditions before placing an order.

Applications

Market applications

A larger passenger platform with 300-10 tires for buyers seeking more vehicle space in their range.

Optional configuration

Confirm for your market.

  • Battery and charger selection for your market
  • Logo, colors and local-language labels
  • Delivery format and spare parts package

OEM customization

Build under your brand.

  • Logo and decals
  • Vehicle color
  • Local-language labels
  • User manual content
  • Packaging and carton marks

Packing and delivery

Complete Vehicle, SKD and CKD.

Final packing dimensions and loading quantities depend on the confirmed vehicle configuration.

01

Complete Vehicle

26 units per 40HQ container (reference).

02

Knock-down supply

100 sets per 40HQ container (reference). SKD / CKD assembly scope is confirmed per project.

03

CKD

Contact us for configuration details.

Standard carton200 x 105 x 90 cm

Container quantities are packing references, subject to final configuration. Knock-down quantities do not specify the extent of disassembly. Confirm the SKD or CKD packing plan before ordering.

Long-term support

Plan spare parts with C19.

A model-specific spare parts package can be discussed with the vehicle order. The final parts list, quantity and packing method are confirmed according to the buyer's after-sales plan.

Request Parts Planning
Can C19 be supplied under our brand?

Yes. Logo, color, labels, manual content and packaging can be reviewed for private-label production.

Is C19 available as SKD or CKD?

Delivery format depends on the model, configuration and buyer assembly capability. Contact us for configuration details.

What battery is used on C19?

Battery configuration is confirmed according to the target market, application and project requirements.

Are spare parts available for C19?

A model-specific spare parts package can be planned with the order. Final parts and quantities are confirmed with the buyer.
