Applications
Market applications
A double-row model for family trips and shared passenger mobility, with a 600 W differential motor.

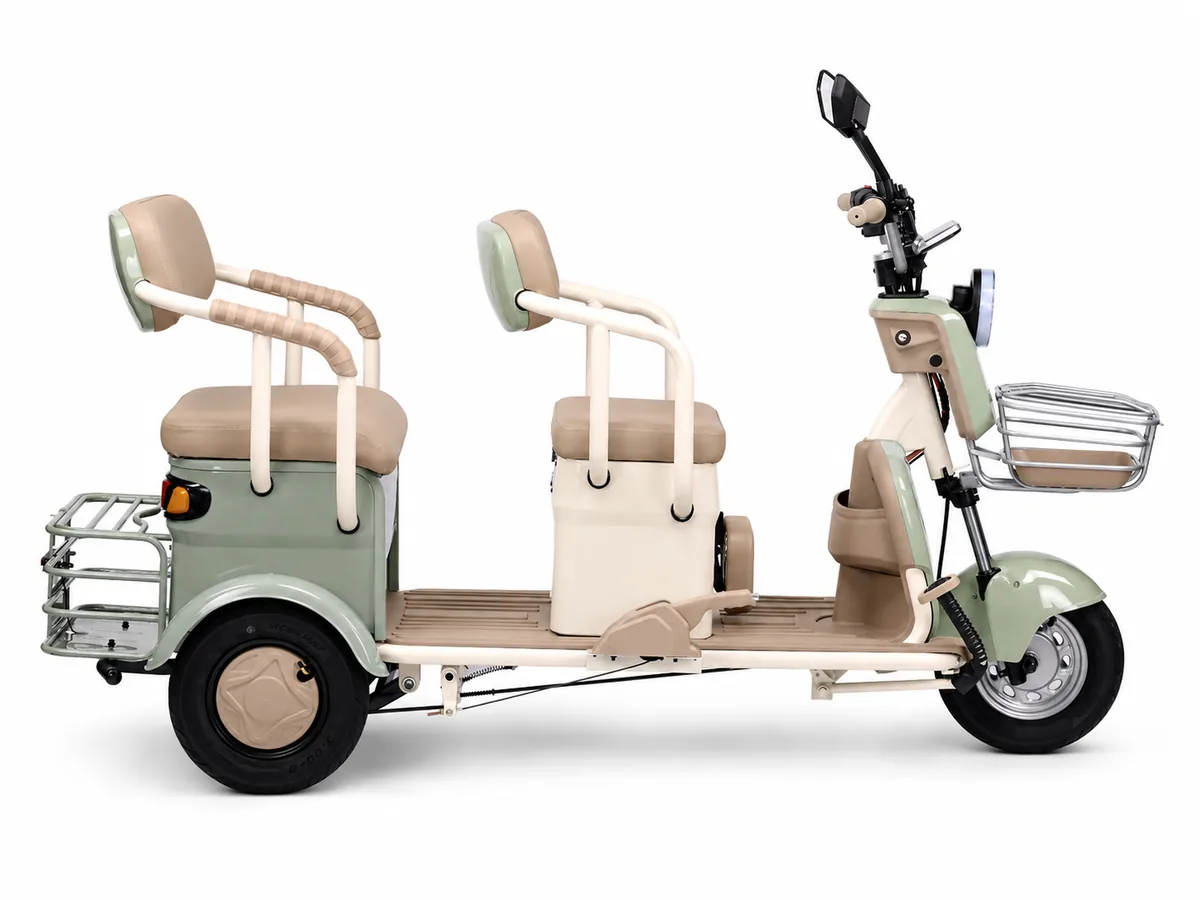

Double-row passenger
A double-row model for family trips and shared passenger mobility, with a 600 W differential motor.
Minimum order: 20 units. Typical lead time: 20-30 days, confirmed with your project.
Standard configuration
Values shown are based on the current product data. Final configuration is confirmed with the order.
| Front suspension | Hydraulic front fork |
|---|---|
| Rear suspension | Spring suspension |
| Display | Digital display |
| Headlight | High-brightness headlight |
| Controller | 12-MOSFET controller |
| Motor | 600 W differential motor (sine-wave) |
| Rear axle | Split rear axle with drum brakes |
| Wheels | Steel wheels |
| Tires | 300-8 tubeless tires, front and rear |
| Seat cushions | Molded foam front and rear seat cushions |
| Brakes | Front 110 mm / rear 130 mm drum brakes |
| Frame finish | Color powder-coated frame |
| Low-speed climbing gear | Optional |
| Vehicle size | 150 x 80 x 102 cm |
| Carton size | 160 x 78 x 64 cm |
| 40HQ complete units | 87 units |
| Net weight | 90 kg |
| 40HQ knock-down sets | 110 sets |
| Seating | 1 driver + 2 passengers |
| Ground clearance | At least 100 mm |
| Speed reference | 25-40km/h |
|---|---|
| Gradient reference | Up to 25% |
| Range reference | 30-55 km |
| Charging reference | 6-8 h |
Performance figures are supplier references. Battery and charger are not included in the base configuration. Confirm battery capacity, load, route, speed setting and test conditions before placing an order.
Applications
A double-row model for family trips and shared passenger mobility, with a 600 W differential motor.
Optional configuration
OEM customization
Packing and delivery
Final packing dimensions and loading quantities depend on the confirmed vehicle configuration.
87 units per 40HQ container (reference).
110 sets per 40HQ container (reference). SKD / CKD assembly scope is confirmed per project.
Contact us for configuration details.
Container quantities are packing references, subject to final configuration. Knock-down quantities do not specify the extent of disassembly. Confirm the SKD or CKD packing plan before ordering.
Long-term support
A model-specific spare parts package can be discussed with the vehicle order. The final parts list, quantity and packing method are confirmed according to the buyer's after-sales plan.
Request Parts PlanningYes. Logo, color, labels, manual content and packaging can be reviewed for private-label production.
Delivery format depends on the model, configuration and buyer assembly capability. Contact us for configuration details.
Battery configuration is confirmed according to the target market, application and project requirements.
A model-specific spare parts package can be planned with the order. Final parts and quantities are confirmed with the buyer.
H8 project inquiry
Send the country, application, quantity, delivery format, battery preference and branding requirements.
